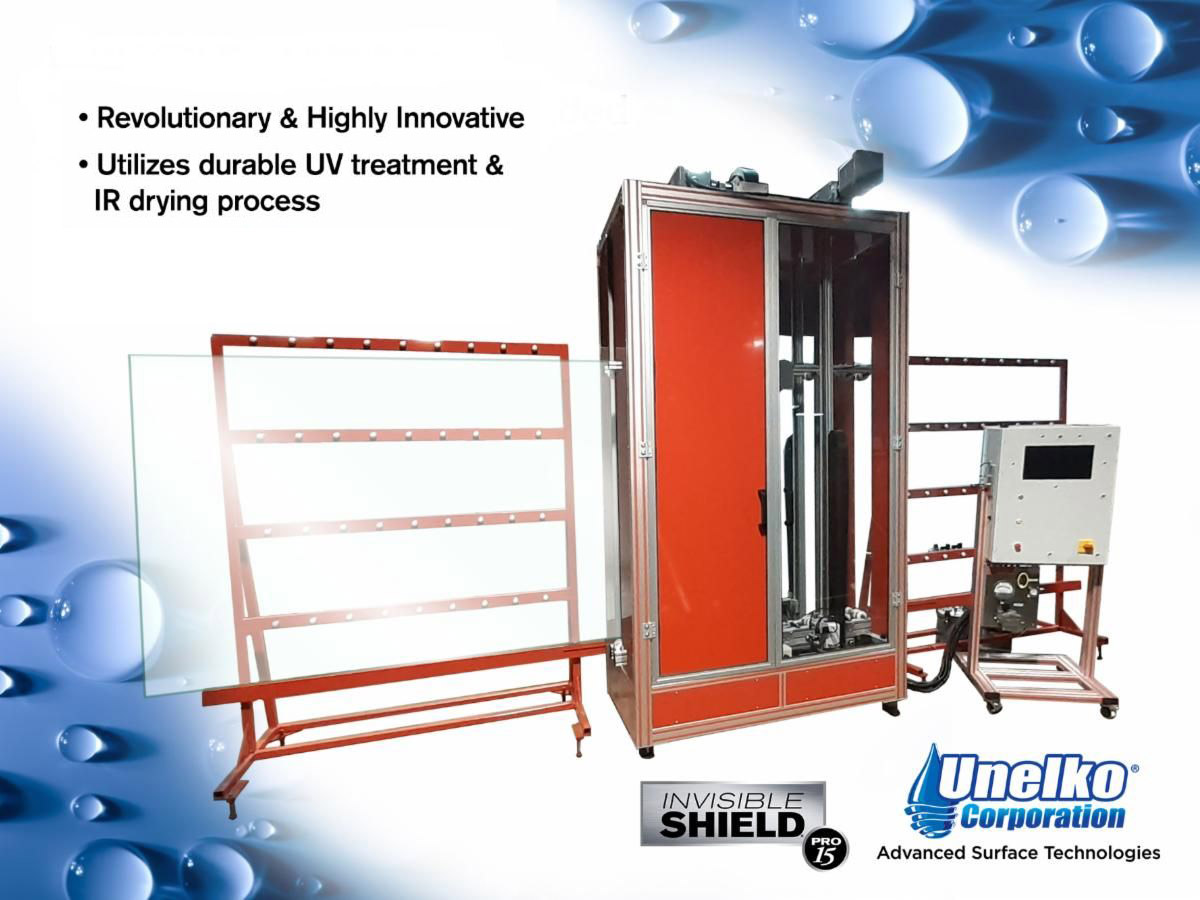

New Invisible Shield® Microburst™ Vertical “Two Sided” Glass Coating Machine

Clean-X Invisible Shield PRO15

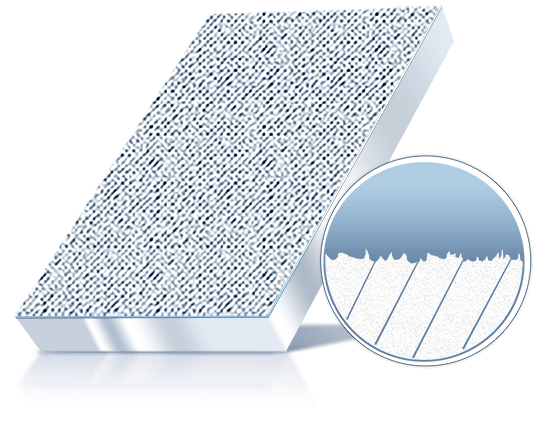

unprotectedprotected

Revolutionary Machine for the Glass Industry

The New Microburst Vertical Glass Coating Machine took some time to develop, however it is the best performing glass coating machine of its kind in the industry and is unmatched from an operational, performance and safety standpoint.

The compact, high output, two-sided vertical coating machine is extremely efficient. It utilizes ultraviolet (UV) and infrared (IR) curing to instantly bond Unelko’s top rated Invisible Shield PRO 15 coating to both sides of almost any size commercial glass. It can treat 70 sq. ft. of glass per minute and 4,200 sq. ft. per hour with a high performance, hydrophobic/oleophobic coating on glass that then leaves the machine fully cured/bonded, protected and almost 99% clean.

Unlike other glass coating machines that require extensive handling, expensive product vials, long curing times, offer inferior performance and/or require excessive cleaning, the Invisible Shield Glass Coating Machine is fully automated and is time, energy, product, and performance efficient. Our durable protective coating increases scratch resistance up to 93%.

SPECIFICATIONS

Machine Footprint:

Height: 144”
Length: 62”
Depth: 48”

Machine + Loading Wings:

Height: 96”
Length: 72”
Depth: 48”

Glass Sheet Specs:

Glass Thickness: 1.25” Max
Min/Max Glass Height: 12” / 84”
Min/Max Glass Length: 24” / unlimited based on wing support
(Limited only by loading/unloading support methods, otherwise continuous feed)

Electrical Requirements:

Power: 25,000 Watts
Load Amps: 3 Phase 240V/100A
Circuit Breaker: 480V/100A breaker, 230V/150A breaker

More reasons why our machine stands above the rest

Protects All Glass

New Invisible Shield® Microburst™ (Two-Sided) Vertical Glass Coating Machine was designed for large and small glass fabricators/manufacturers in need of an efficient automated method to coat glass. The machine’s flexibility enables the coating of small or large pieces to include shower glass, windows, doors, IG units, partitions, railings, sand blasted & acid etched glass, windshields and more.

State of the Art Protective Coating Equipment

Designed by Unelko Corporation and Perfect Score Technologies, the Microburst machine is the best performing glass coating machine of its kind in the industry and is unmatched from an operational, performance and safety standpoint.

Unique UV and IR Technology Strengthens the Glass!



Durable Protection with Unique UV and IR

The Microburst utilizes ultraviolet (UV) and infrared (IR) curing to instantly bond Unelko’s top rated Invisible Shield PRO 15 protective coating to both sides of almost any size glass. The protective coating performance is outstanding, and with a unique air blade feature, glass exits the machine almost 99% clean—and ready to install.

Outperforms the Competition with Better Efficiency

Unlike other glass coating machines that require extensive handling, expensive product vials (and per unit cost), long curing times, offer inferior performance and/or require excessive cleaning, the Microburst Machine is fully automated and is time, energy, product, and performance efficient. Glass fabricators can treat 1 unit to 1 Million units at the exact same per unit cost. How economical is that!?

The compact, high output, two-sided automatic coating machine utilizes innovative ultraviolet (UV) and infrared (IR) curing to instantly form a molecular bond and protective coating to all glass. While the coating instantly bonds without UV, the technology further enhances and strengthens the glass.

The machine is extremely efficient. The spray coating application is CNC motion controlled having the ability to coat wither single or both sides of the glass.
The CNC design provides precise spray application coverage, plus increased reliability compared to banks of multipole spray heads to adjust/troubleshoot.

It can treat 70 sq. ft. of glass per minute and 4,200 sq. ft. per hour with a high performance, hydrophobic/oleophobic coating on glass, and as a final step the glass is rinsed, and air knife blown to yield a clean glass panel. The glass leaves the machine fully protected and 99% clean. It has a continuous feed, eliminating time consuming loading/unloading and re-racking. It offers the highest industry glass protection production efficiency / capacity – and treats over 8 million square feet of glass annually. The Microburst delivery system automatically senses and treats only the glass in the cabin, eliminating any waste.

These above-mentioned attributes improved upon many of the industries concerns as related to other coating machines.

0 sq ft
Glass Treated Per Minute
0 sq ft
Glass Treated Per Hour
0 sq ft
Glass Treated Annually

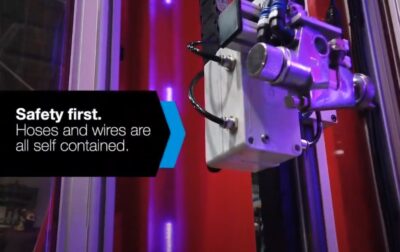

Unmatched Safety Features

The Microburst coating machine is fully vented, emits zero fumes, and is extremely safe. Made of 100% corrosion-free aluminum, has NEMA 4 rated Polymer Coated air/pressure sensitive enclosures and electrical boxes.

Huge Cost Savings

One can more than double the sq. footage over other protective coating machinery with less handling. (Time=Money!)
The Microburst coating machine and Invisible Shield PRO 15 Glass Coating offers the most effective, low-cost solution to the ongoing problem of glass degradation, for improved cleaning and long term preservation of residential and commercial glass. Save on repairs and replacements by durably protecting glass for pennies per sq. foot. The Invisible Shield PRO 15 coating improves scratch resistance up to 93% and reduces cleaning time up to 75% annually.

Scratch Resistance 93%
Cleaning Time Reduction 75%
Unique Customization Options

It has a current height capacity of 7 feet, but units can be customized for almost any height glass depending upon product/production requirements and is continuous. Flexible wing dimensions available for additional glass staging capacity.

Warranty

24/7 full remote, diagnostics service. Coverage within a period (either the earlier) of 2,000 hours of usage or twelve months from the date of machine delivery. The warranty covers all non-consumable parts to include – blower unit, circulation fans, drive motors, power supplies, electronic drive controllers/amplifiers, motion bridge, infrared red and ultraviolet lighting units. Consumable or expendable parts from normal wear and tear is not covered within this warranty period. The Microburst was designed for regular use cycles, 8 hours a day, 5 days a week. It is a work horse!

Coating Equipment Benefits:

  • Space Saving and Fully Automated Coating System
  • Durable UV & IR Bonding Technology
  • Manufactured to the Highest Standards and Specifications
  • Efficient Vertical Design – Compact Adaptable Footprint
  • Ability to Coat One or Both Sides of Glass
  • Precise Spray/Coverage with Controllable CNC Spray Head
  • Safe & Fully Vented System
  • Touch Screen Controls with Adjustable Feed Rate
  • Glass is Completely Coated/Protected and Exits the Machine Rinsed, Clean and Fully Protected
  • Efficiency – Coats up to 70 sq feet Per Minute
  • Height Capacity – 84 inches of Glass Treated in One Minute
  • All Electronics are Explosion Proof with Built-In Safety System
